Product Description:

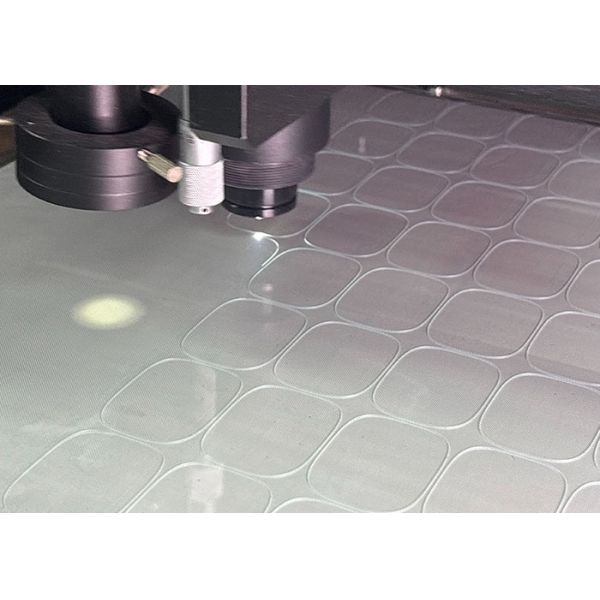

This device is an efficient cutting device that uses high-energy lasers to cut glass. The cutting is aimed at shape processing and CO2 laser assisted splitting is used to achieve glass cutting and splitting. Infrared picosecond laser cutting and splitting machine, non-contact high-precision cutting, no heat loss, precise edge control, can accurately cut into circular, irregular, and arbitrary shapes. The cutting edge is smooth and neat without burrs, without the need for secondary polishing or polishing. The cutting accuracy can reach ± 0.01mm, and the edge breakage is less than or equal to 0.05 microns. There are no mold consumables, one click replacement of drawings, support customized size and irregular cutting, and can efficiently cut in batches with a yield rate of up to 99%. The quantity is stable and consistent,
Features:

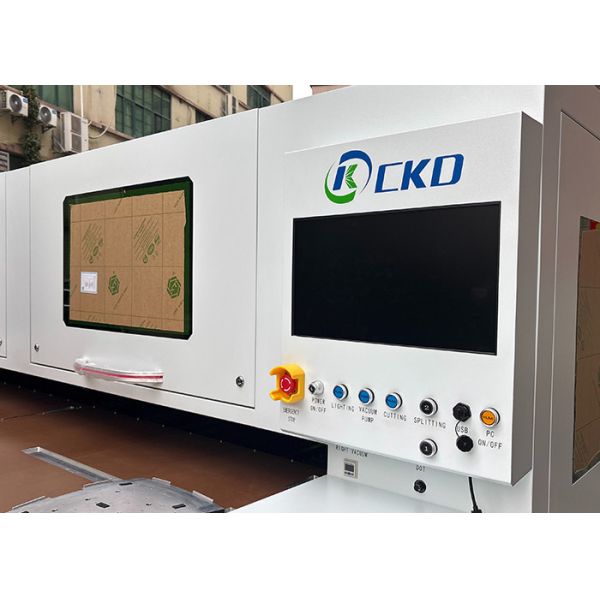

- Product Name: Laser Glass Cutting Machine
- Linear Speed: Up to 1000mm/s for efficient cutting
- Splitting Laser Source Cooling Method: Water Cooling to ensure optimal performance
- Working Environment: Suitable for operation at 26℃
- Mobility: Equipped with heavy-duty wheels for easy movement and repositioning, featuring locking mechanisms for stability
- Splitting Laser Source Pulse Frequency: Adjustable between 1-100kHz
- Ideal for irregular glass cutting with high precision
- Functions as a small glass laser cutting machine, perfect for detailed and delicate tasks
- Incorporates advanced fiber laser cutting machine technology for superior cutting quality
Technical Parameters:
| Dimension |
2150mm × 2080mm × 1960mm / 2550mm × 2080mm × 1960mm |
| Laser Type |
Infrared Picosecond |
| Whether CNC |
Yes |
| Environmental Conditions |
Works Best In Temperatures Between 15°C And 30°C, With 20%-80% Relative Humidity, Suitable For Cleanrooms Or Industrial Environments |
| Splitting Laser Source Laser Type |
RFC02 (Radio Frequency CO2) |
| Advantages |
Irregular-shape High-speed Cutting High Cutting Quality, No Taper, No Burr, Small Chipping High Yield Rate, Low Consumables And Energy-saving No Pollution, No Powder, And No Wastewater |
| Work Size |
610*700mm X 2 Customizable |
| Support Image And Text Formats |
AI PLT DXF BMP Dst DWg LAS DXP |
| Cutting Precision |
±0.01mm |
| Minimum Cutting Burr |
≤5um |
Applications:
Can process "ultra-clear glass, regular white glass, high boron silicate glass, quartz stone glass", etc., mobile phone cover, car glass cover, camera glass cover, etc., mobile phone sapphire cover, camera sapphire cover, sapphire light strip, K9 glass, filter film cutting, reflector cutting, etc. Optical glass.
Introduction to the company:
Shenzhen CKD Precision Mechanical & Electrical Co., Ltd. was established in 2010. lt is a Ultrafast laser equipment manufacturer and automation new intelligent manufacturing solution provider that integrates R&D, production, sales, and service. After more than ten years of deep cultivation and accumulation, the company has accumulated more than 70 patents, passed CE certification,1S09001 quality management system certification, and Intellectual Property Management System Certification. lt is a national high-tech enterprise and a Shenzhen Professional, Refined, Special, and Innovation Enterprise.
The company has a sheet metal workshop, machining workshop, assembly workshop, and process development and debugging workshop, covering R&D, Production, Testing, Sale & after service.
Up to now, the company has strong R&D team that has been engaged in laser structural design and laser application technology for many years. With a strong R&D ability and core software technology, the company has achieved innovation and break-through in product technology in fields such as ultra fast laser cutting, laser drilling, TFT-LCD screen laser repair, semiconductor plastic sealing and debonding, diamond grinding, laser welding, and laser marking. Especially in the processing of hard and brittle materials such as glass and ceramics, TFT-LCD repair, semiconductor plastic sealing and debonding, as well as diamond grinding and other automated new intelligent manufacturing, we provide cus- tomers with low-cost, high-quality, and high-efficiency solutions,making contributions to customer with value-added,innovation,and development.
Packing and Shipping:
Product Packaging:
The Laser Glass Cutting Machine is carefully packaged using high-quality, durable materials to ensure safe transportation. The machine is first wrapped in protective foam and bubble wrap to prevent any damage during handling. It is then placed inside a sturdy wooden crate with secure cushioning to absorb shocks and vibrations. The packaging is designed to be moisture-resistant and tamper-proof, guaranteeing the machine arrives in perfect condition.
Shipping:
We offer worldwide shipping options for the Laser Glass Cutting Machine. The product can be shipped via air freight or sea freight depending on the customer’s preference and urgency. All shipments are tracked with a reliable courier service to provide real-time updates. Our logistics team ensures timely delivery and handles all necessary export documentation and customs clearance to facilitate a smooth shipping process.
