Product Description:
This device is an apparatus for efficient cutting of glass by high-energy laser, where the cutting is for profile machining, and CO₂ laser-assisted cracking used to achieve the cutting and cracking of glass.
Suitable for various types of glass laser cutting, with cutting accuracy up to ± 0.01mm and blade damage controlled within 5 microns. The cutting edge is smooth and flat, without burrs, with minimal damage, and does not require subsequent grinding, polishing, or other processing steps.
Technical Parameters:
| Drive Motor |
XY Linear Motor + Optical Grating Scale |
| Energy Consumption |
Standby Power Is About 500W, And Average Power Consumption During Cutting Is 2.5kW. Energy-efficient With Eco-friendly Modes. |
| Splitting Laser Source Wavelength |
10.6µm |
| Acceleration |
1G |
| Repeatability |
±1.5μm |
| Positioning Accuracy |
±2μm |
| Splitting Laser Source Cooling Method |
Water Cooling |
| Work Size |
610*700mm X 2, Customizable |
| Cutting Precision |
±0.01mm |
Applications:

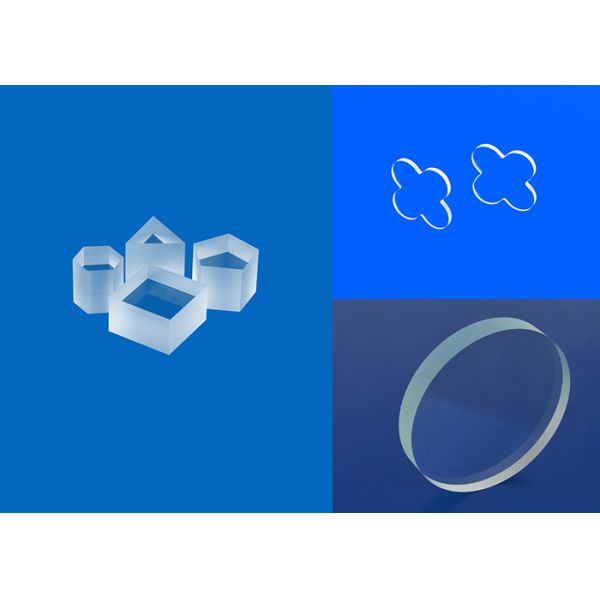

Can process "ultra-clear glass, regular white glass, high boron silicate glass, quartz stone glass", etc., mobile phone cover, car glass cover, camera glass cover, etc., mobile phone sapphire cover, camera sapphire cover, sapphire light strip, K9 glass, filter film cutting, reflector cutting, etc. Optical glass.
Introduction to the company:
Shenzhen CKD Precision Mechanical & Electrical Co., Ltd. was established in 2010. lt is a Ultrafast laser equipment manufacturer and automation new intelligent manufacturing solution provider that integrates R&D, production, sales, and service. After more than ten years of deep cultivation and accumulation, the company has accumulated more than 70 patents, passed CE certification,1S09001 quality management system certification, and Intellectual Property Management System Certification. lt is a national high-tech enterprise and a Shenzhen Professional, Refined, Special, and Innovation Enterprise.
The company has a sheet metal workshop, machining workshop, assembly workshop, and process development and debugging workshop, covering R&D, Production, Testing, Sale & after service.
Up to now, the company has strong R&D team that has been engaged in laser structural design and laser application technology for many years. With a strong R&D ability and core software technology, the company has achieved innovation and break-through in product technology in fields such as ultra fast laser cutting, laser drilling, TFT-LCD screen laser repair, semiconductor plastic sealing and debonding, diamond grinding, laser welding, and laser marking. Especially in the processing of hard and brittle materials such as glass and ceramics, TFT-LCD repair, semiconductor plastic sealing and debonding, as well as diamond grinding and other automated new intelligent manufacturing, we provide cus- tomers with low-cost, high-quality, and high-efficiency solutions,making contributions to customer with value-added,innovation,and development.
Packing and Shipping:
Product Packaging:
The Laser Glass Cutting Machine is carefully packaged using high-quality, durable materials to ensure maximum protection during transit. Each unit is wrapped in anti-static foam and secured within a sturdy wooden crate to prevent any damage from shocks or vibrations. The packaging is designed to be moisture-resistant and includes clear labeling for easy identification and handling instructions.
Shipping:
We offer reliable shipping options worldwide, utilizing trusted carriers to ensure timely and safe delivery of your Laser Glass Cutting Machine. The product is shipped with full insurance coverage, and tracking information is provided for every order. Our logistics team coordinates closely to manage customs clearance and handle all necessary documentation, guaranteeing a smooth and hassle-free shipping experience.
